AllNice

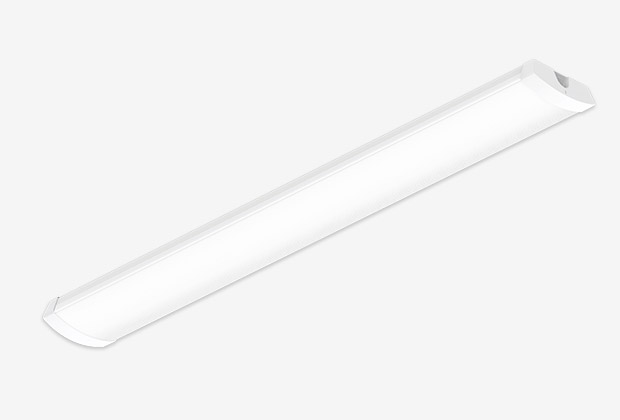

AllNice Linear Light is a flexible and slim luminaire with IP44 for multiple indoor application such as parking garages, schools, offices, culverts, laundry rooms, kitchens and industrial buildings. It is suitable for surface mounted or wall mounted, rails bracket mounting, horizontal wires and wire suspension. Thanks to the fastener design of end cap, we can save 80% labor cost of installation.
Technical Specifications
-
ITEM MODEL NO. POWER LM/W FUNCTION LENGTH
-
1
AL2H-20-B8
12W-20W switchable
130
ON/OFF
600mm
-
2
AL2H-20-B4
12W-20W switchable
130
DALI
600mm
-
3
AL4H-35-B8
20W-35W switchable
135
ON/OFF
1200mm
-
4
AL4H-35-B4
20W-35W switchable
135
DALI
1200mm
-
5
AL5H-50-B8
20W-50W switchable
140
ON/OFF
1500mm
-
6
AL5H-50-B4
20W-50W switchable
140
DALI
1500mm
GENERAL DATA
- Dimension 600mm
- Material Steel+PMMA
- Luminaire Colour White 9003
- Protection Class IP44
- Shock Resistance Category IK04
- Operating Temperature -20°+ 40°C
- Storing Temperature -25° + 65°C
- Certificates CE, RoHs
- Warranty 5 years
ELECTRICAL DATA
- Function ON/ OFF
- Driver BOKE
- Nominal Wattage 20W-18W-15W-12W by Switch
- Mains Frequency 0/ 50/ 60Hz
- Voltage AC/ DC 220-240V
- Input Current 200/ 250/ 300/ 350mA
- Power Factor λ 0.97
- Inrush Current I Peak 9.8A
- Inrush Current T Width 250μs
- MCB B Type 10A 28
- MCB B Type 16A 45
- MCB C Type 10A 47
- MCB C Type 16A 75
- Switching Cycles Before Failure > 500,000
- Protection Class IEC Safety Class I
- PstLM <1
- SVM <0.1
- THD 20%
- Glow Wire Test (°C) 650°C
- Central Emergency Pass Yes, EL marked
- Self-contained Emergency Optional
PHOTOMETRICAL DATA
- LED Chip SANAN
- Color Temperature 3000/ 4000/ 5000/ 6000K
- LM/W 130lm/w
- Lumen Max 2,600
- CRI/ RA CRI>80 or >90
- SDCM SDCM<5 or <3
- Beam Angle Milky cover: 120°
- UGR <27
- L80 100,000H
PACKAGE DATA
- Packing Unit 4pcs
- Carton Dimmnsions 700x250x190mm
- Gross Weight 8.5KG
