ClickFast
ClickFast

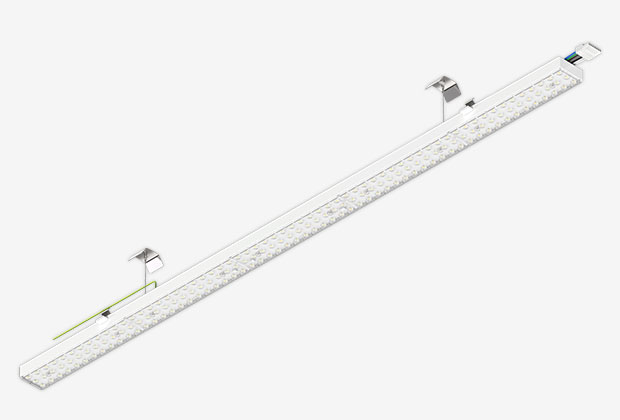

ClickFast is an LED Universal Retrofit solution to replace exisiting T8 T5 flurorescent system. The luminaire is compatible with over 24 different old rails installed in the past. With up to 180lm/w, the fixture is an economical and environmental-friendly device for your applications in supermarket, warehouse, factory, etc.
Technical Specifications
GENERAL DATA
- Dimension 1528mm
- Material Aluminum+PMMA@ Lens, PC@Milky cover
- Luminaire Colour White 9003 or Black
- Protection Class IP20
- Shock Resistance Category IK04
- Operating Temperature -20°+ 40°C
- Storing Temperature -25° + 65°C
- Certificates ENEC, CE, CB, RoHs
- Warranty 5 years
ELECTRICAL DATA
- Function ON/ OFF
- MCB C Type 10A 32
- Central Emergency Pass Yes, EL marked
- Glow Wire Test (°C) 650°C
- THD 20%
- SVM <0.1
- PstLM <1
- Protection Class IEC Safety Class I
- Switching Cycles Before Failure > 500,000
- MCB C Type 16A 51
- MCB B Type 16A 31
- Driver Philips
- MCB B Type 10A 19
- Inrush Current T Width 276μs
- Inrush Current I Peak 12.62A
- Power Factor λ 0.95
- Input Current 0.33A
- Voltage AC/ DC 220-240V
- Mains Frequency 0/ 50/ 60Hz
- Nominal Wattage 58W-50W-40W-32W by Switch
- Self-contained Emergency Optional
PHOTOMETRICAL DATA
- LED Chip SANAN
- Color Temperature 3000/ 4000/ 5000/ 6000K
- LM/W 175lm/w
- Lumen Max 9,600
- CRI/ RA CRI>80 or >90
- SDCM SDCM<5 or <3
- Beam Angle 120° /90° / 60° / 30°/ DS25°/ 25° L/R, Milky cover: 120°
- UGR <27
- L80 100,000H
PACKAGE DATA
- Packing Unit 8pcs
- Carton Dimensions 1585x250x200mm
- Gross Weight 16.5KG
